接線說明EXPLAIN CONNECTION
1、用螺絲刀開啟彈簧:螺絲刀貼方孔內側壁插入并撬動使彈簧打開(從圓孔中可以看見)。然后，順勢將螺絲刀插到底，這時螺絲刀停在方孔中，彈簧則完全打開。
2、導線的剝線長度要按照說明書上指定的長度做。
3、向圓孔中入線時，若作用多股線則絕不能使之分叉。要使多股線全部入孔。
4、導線的絕緣外皮要進入端子的圓孔，例如，對于2.5mm2或4mm2導線而言，絕緣外皮要進入2-3mm。若是更粗的導線，絕緣皮進入的要更深。
5、螺絲刀拔出后，線即接好。用手輕拉導線，若拉不出即接好。
6、最后作一下檢查，可用手將導線在接線孔處壓彎，要求此時不能看到銅絲。
[此說明對該樣本中所有具有籠式彈簀夾持單元(CAGE CLAMP)的器件有效。]
1.Open the spring with a screwdriver: insert the screwdriver along with the inner sidewall of square hole to open the spring (you can observe from the round hole). Then insert the screwdriver to the bottom, thus the spring is fully opened while the screwdriver is remained in the square hole.
2. Stripping length of the conductor should be made according to the operating manual.
3. When leading wire into the round hole, if it is stranded wire, please make sure that it hasn't been branched off The stranded wire should be led into the hole wholly.
4.Insulation sheath of the conductor should be led into the round hold of terminal, for example, for a conductor of2.5mm2 or 4mm2, their insulation sheath should be led in for 2-3mm. For thicker conductors, the insulation sheath should be led in deeper.
5. While withdrawing the screwdriver, the conductor has been finished wiring. Draw the conductor gently, ifit cannot be drawn out, it means it has been well wired.
6.Make a final examination, you can press and bend the conductor at the connection hole, and it is in good condition if you cannot find the copper wire.
[This instruction is ffective for all CAGE CLAMPS in the catalogue.]

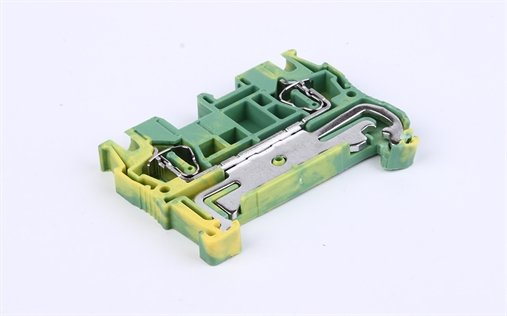

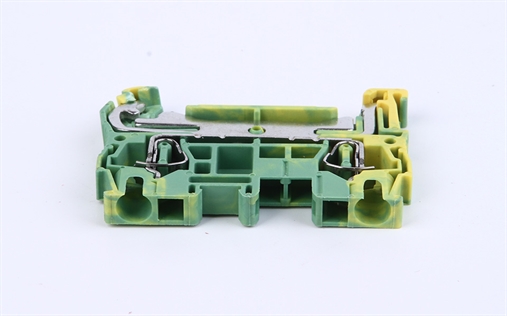

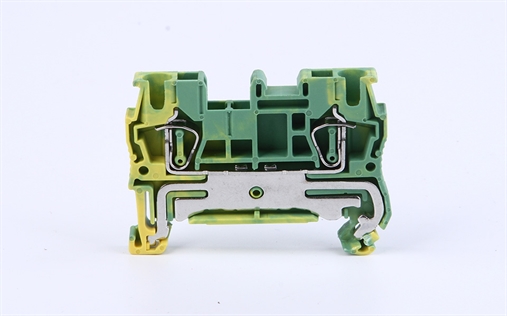

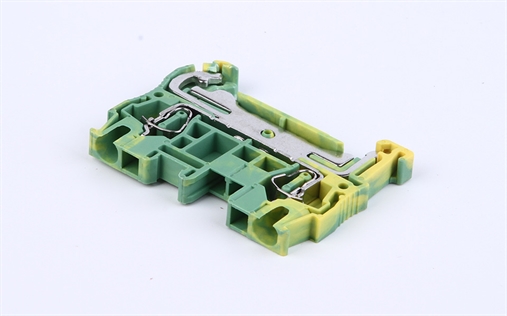

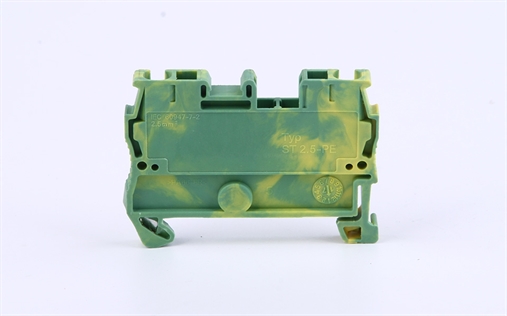

JHN1正面、彈簀式接線端子
JHN1 OBVERSE、SPRING TYPES TERMINAL BLOCKS
